X-Rail Fall Protection height 2300 mm

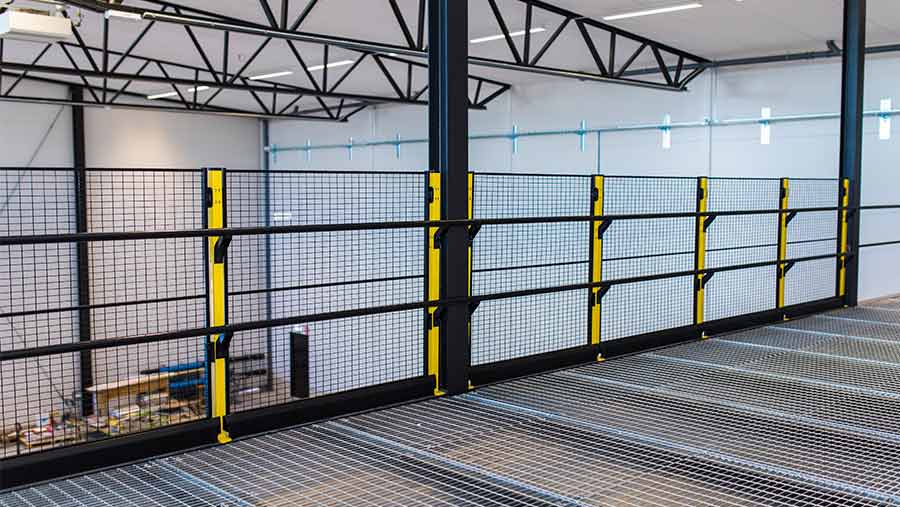

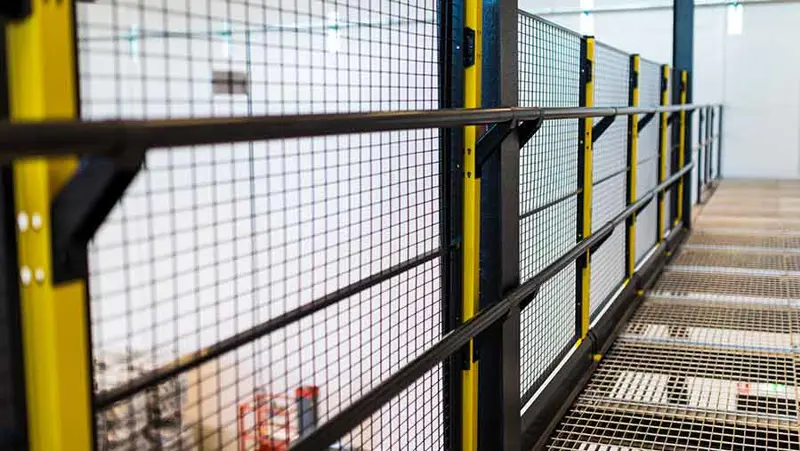

Height 2300 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Get your quote now

Models

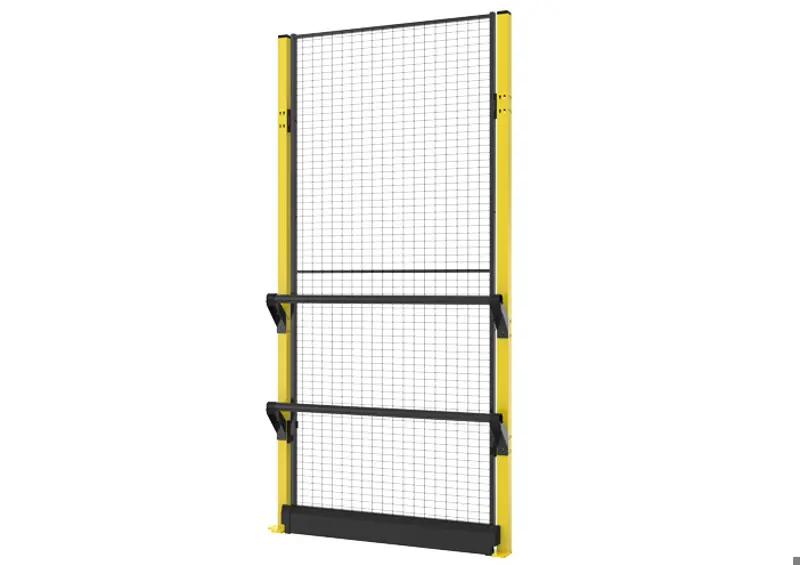

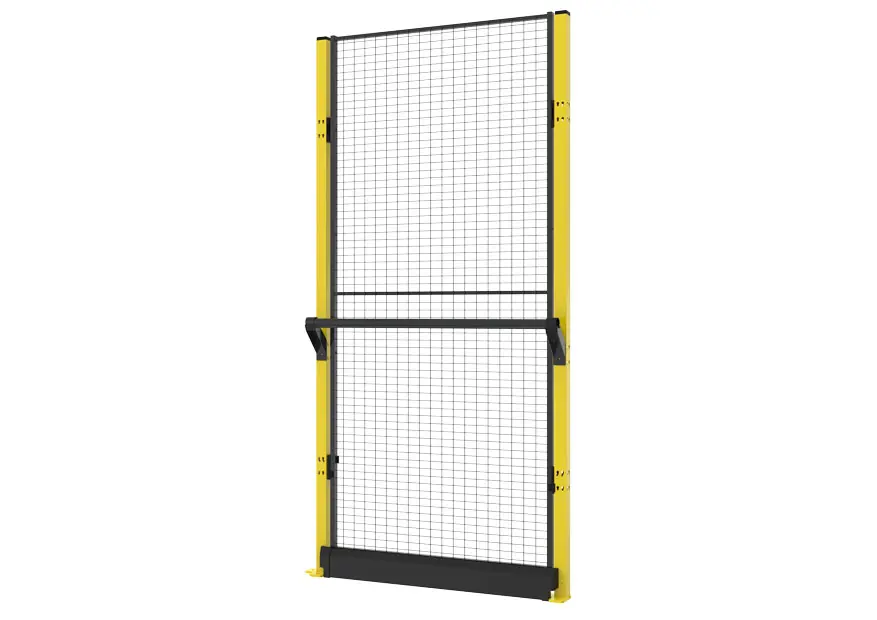

  • Mesh panels

    13 Articles
    CAD Article Height (mm) Width (mm) Color
    W322-220025 2200 250 Graphite Black (RAL 9011)
    W322-220040 2200 400 Graphite Black (RAL 9011)
    W322-220050 2200 500 Graphite Black (RAL 9011)
    W322-220060 2200 600 Graphite Black (RAL 9011)
    W322-220070 2200 700 Graphite Black (RAL 9011)
    W322-220080 2200 800 Graphite Black (RAL 9011)
    W322-220090 2200 900 Graphite Black (RAL 9011)
    W322-220100 2200 1000 Graphite Black (RAL 9011)
    W322-220110 2200 1100 Graphite Black (RAL 9011)
    W322-220120 2200 1200 Graphite Black (RAL 9011)
    W322-220130 2200 1300 Graphite Black (RAL 9011)
    W322-220140 2200 1400 Graphite Black (RAL 9011)
    W322-220150 2200 1500 Graphite Black (RAL 9011)

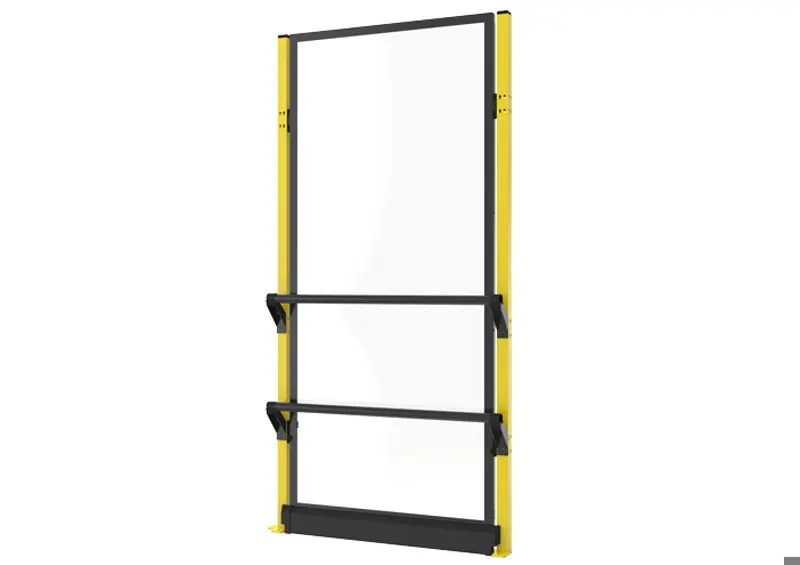

  • Plastic panels

    4 Articles
    CAD Article Height (mm) Width (mm)
    W328-220025 2200 250
    W328-220040 2200 400
    W328-220070 2200 700
    W328-220100 2200 1000

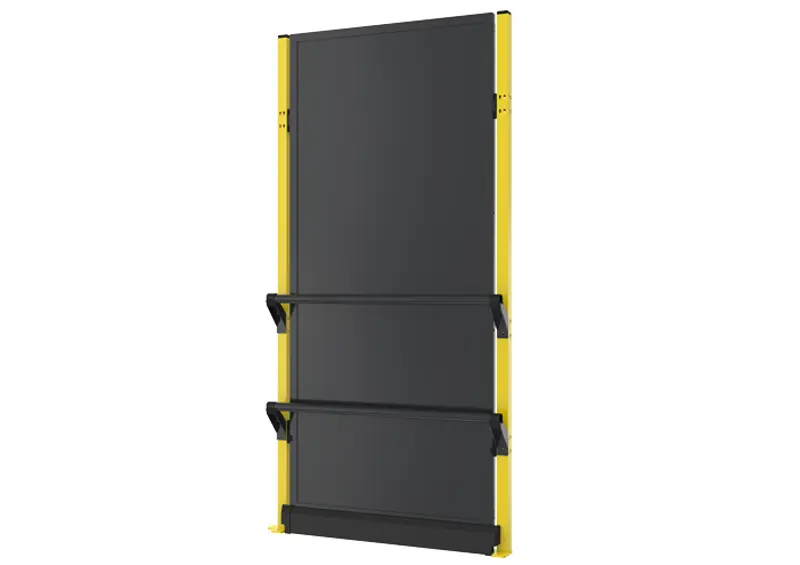

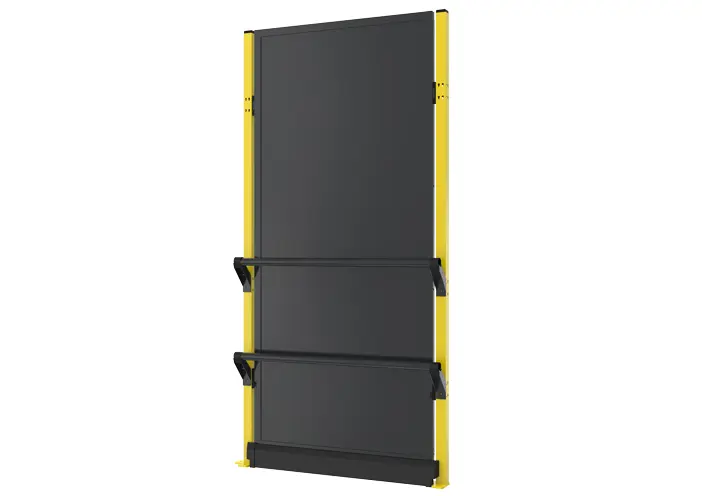

  • Sheet panels

    4 Articles
    CAD Article Height (mm) Width (mm)
    W329-220025 2200 250
    W329-220040 2200 400
    W329-220070 2200 700
    W329-220100 2200 1000
  • Posts 50x50mm

    1 Articles
    CAD Article Height (mm) Color
    P1170-230 2300 Zinc Yellow (RAL 1018)

Downloads

X-Rail Fall protection - brochure

Brochure

X-Rail Fall Protection - technical leaflet

Product information

X-Rail assembly guide

Assembly guide

X-Rail Anchor Bolt

Assembly guide

List of fastening materials for X-Rail

Product information

Combination option for Counter plate

Product information

Technical Specifications

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

X-Rail 2300 mm can be used either without panels or with X-Guard Classic panels - mesh, plastic, and sheet metal.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
