Total Cost of Ownership for Impact Protection: Steel vs. Polymer Barriers

When evaluating impact protection, the first question is usually, “How much per metre?” But purchase price alone does not tell the full story. The true cost is defined after installation, when the barrier starts doing its job. Every impact, every repair and every hour of downtime adds to the total cost of ownership (TCO).

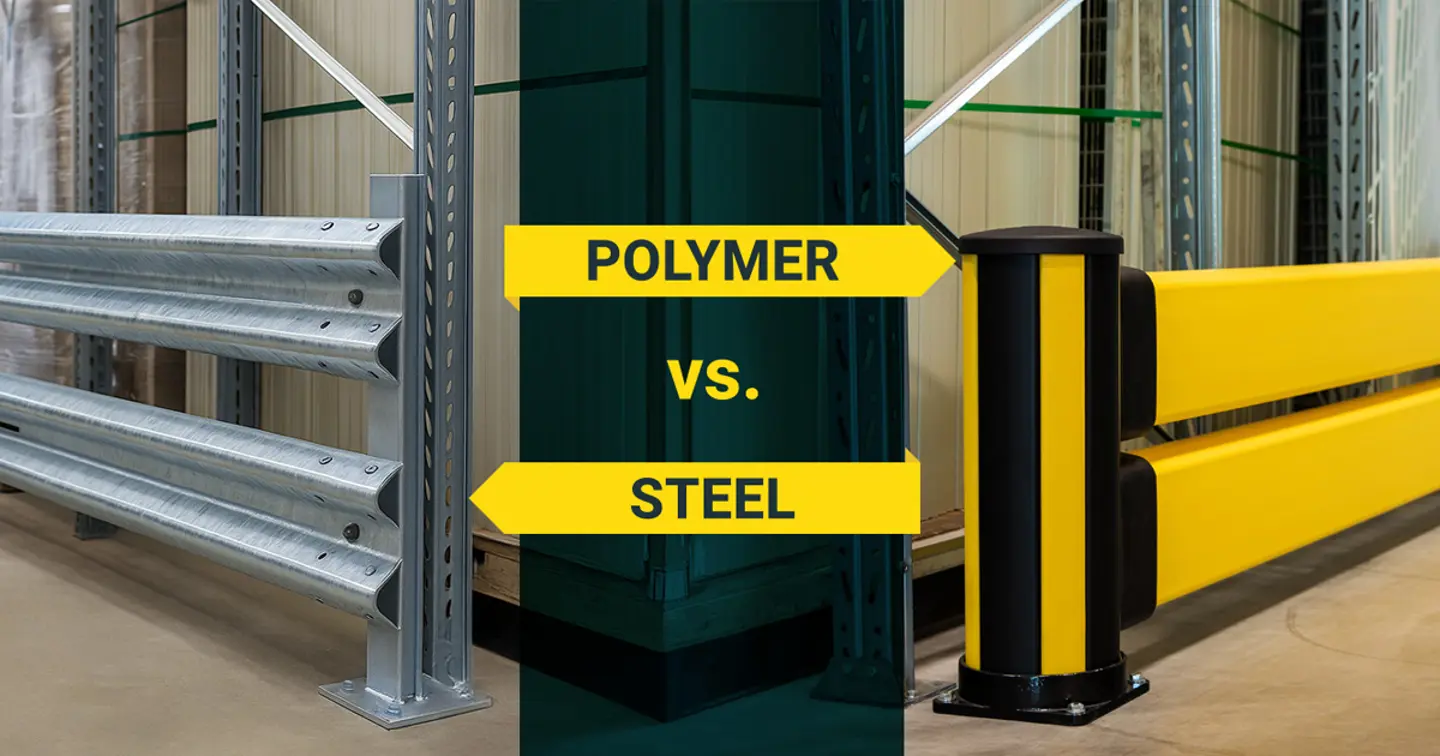

Comparison of steel and polymer impact barriers installed in a warehouse environment

Steel vs. Polymer Barriers

This comparison looks at two common barrier types used in logistics and manufacturing, steel barriers and their polymer equivalents. Both can play a role, but they perform, age and cost very differently over time. The comparison covers the differences over a five-year period with a focus on initial purchase and barrier maintenance and repair. As costs related to operational outages and vehicle repair can vary widely, they have been excluded.

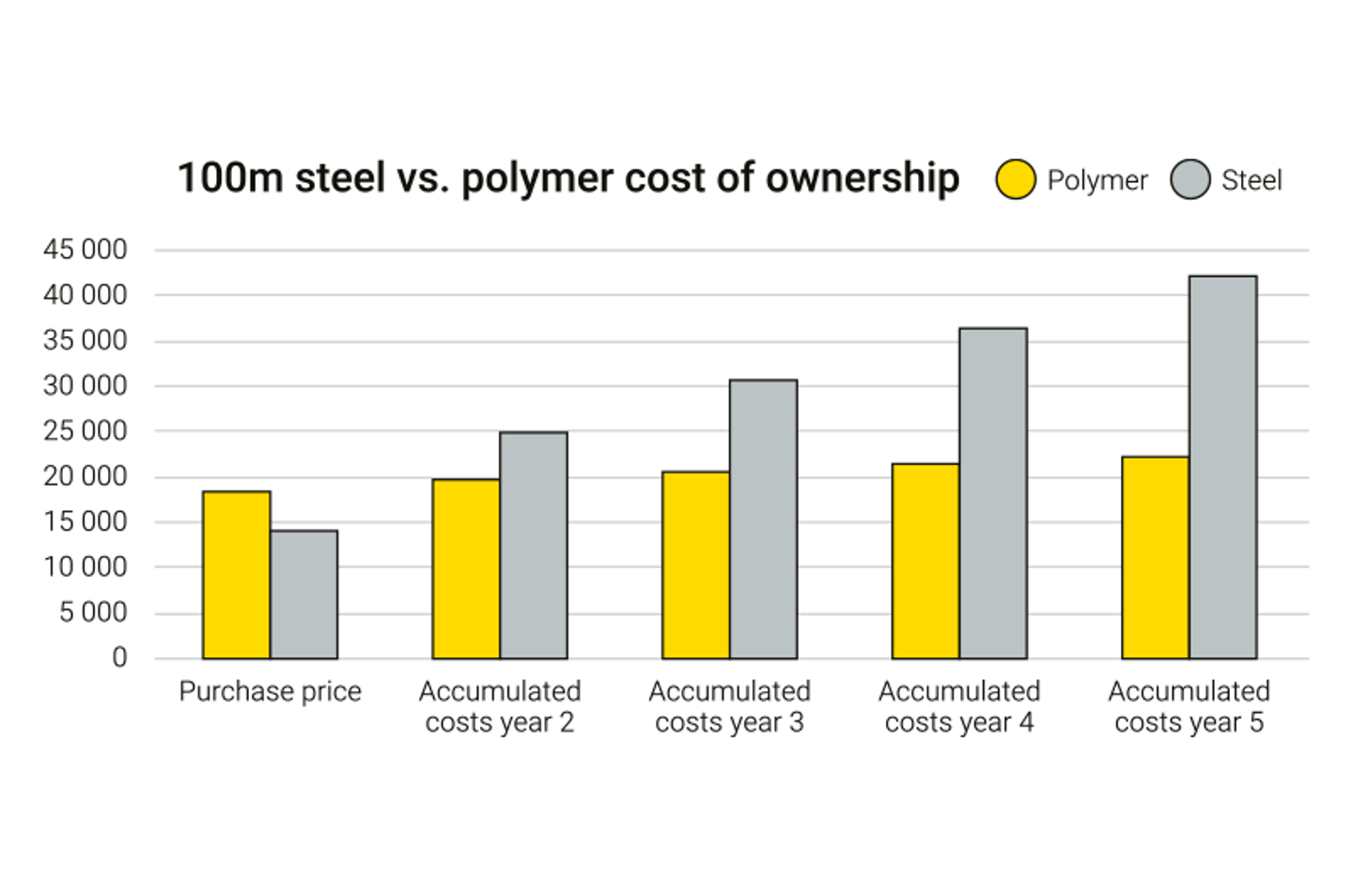

Chart comparing total cost of ownership for steel and polymer barriers over five years

Comparison of total cost of ownership for steel and polymer barriers over five years

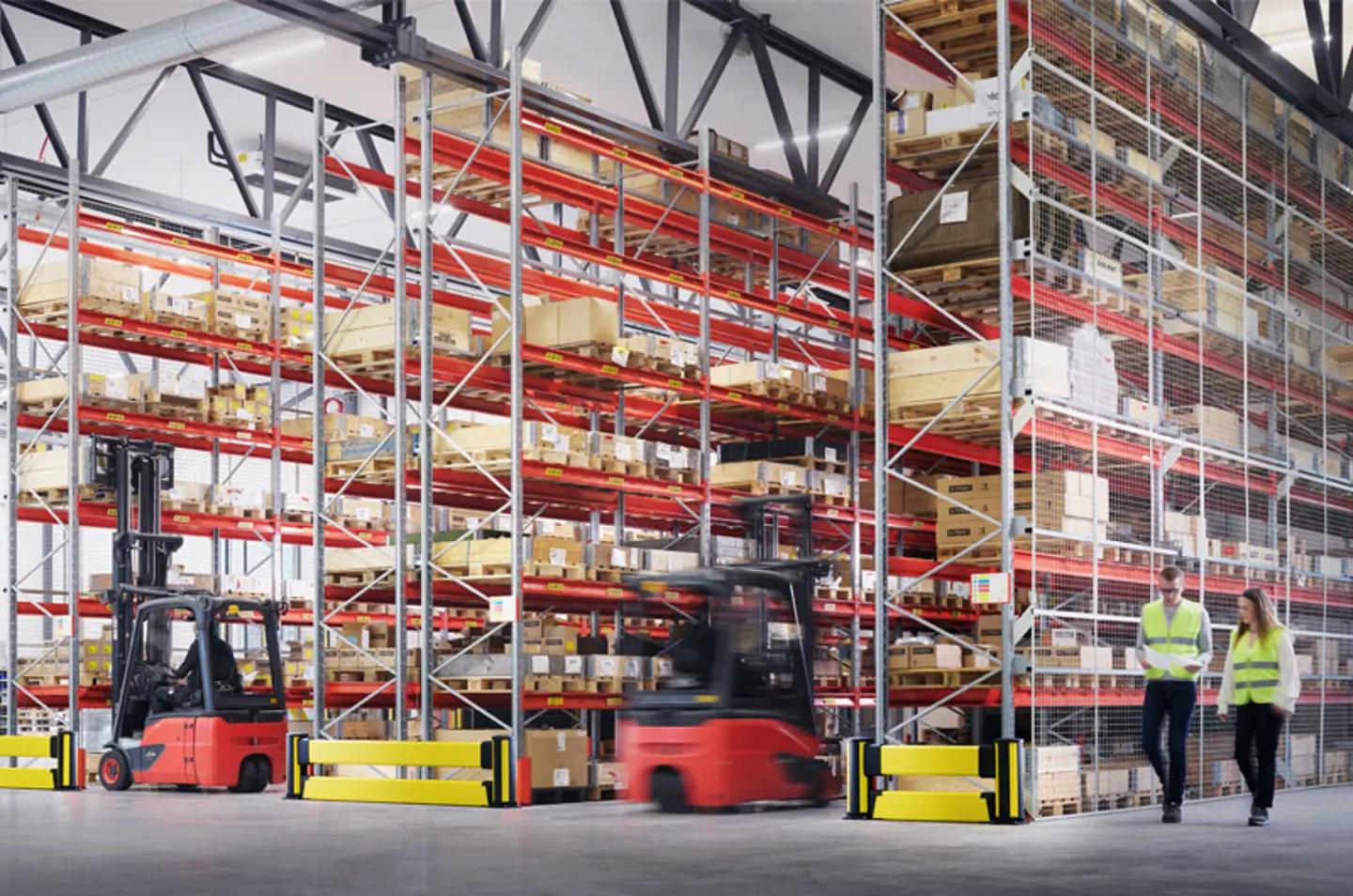

Warehouse aisle with pallet racking protected by polymer impact barriers and forklift traffic

Initial purchase price

Steel barriers usually have a lower initial cost. Polymer systems require a higher upfront investment. However, this is where the cost advantage of steel usually ends. Once the barriers are exposed to real impacts in busy environments, long-term performance becomes the decisive factor.

Impact performance

A barrier’s true value is defined by how it handles impact energy. Steel barriers are generally rigid. During impact, energy is transferred through posts and anchors directly into the concrete floor. The barrier deforms, the floor absorbs the force and both often require attention after significant impacts. After severe impacts, repairs are often required.

Most steel barriers used in industrial environments are not performance-rated. While they may resemble highway barriers, they are rarely tested or certified for industrial impact scenarios. This means their behaviour during an impact is not guaranteed. Polymer barriers are engineered to flex and absorb energy throughout their structure. Posts bend, rails deflect and the system rebounds to its original shape. This reduces the force transferred into anchors and concrete, helping preserve the floor over time.

This flexibility turns many impacts from repair events into non-events. In busy facilities where near misses and light collisions occur frequently, the difference adds up quickly.

Polymer barriers from reputable manufacturers are also tested to recognised standards such as PAS 13, ANSI MH 31.3 or UNI/TS 11886-1. This provides predictable performance and confidence that the system will behave as intended when it matters.

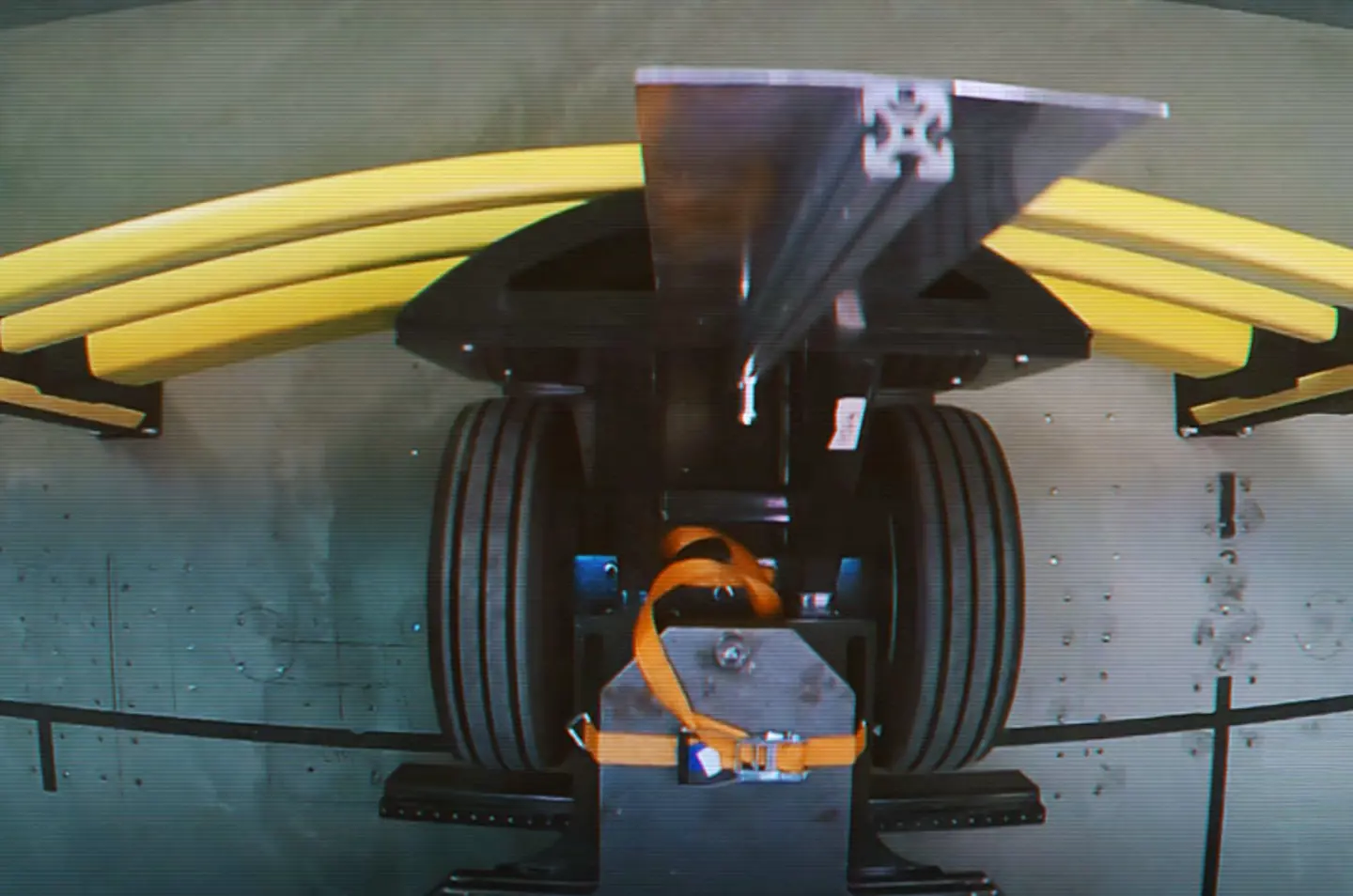

Impact test showing a vehicle colliding with polymer barrier protection in a controlled environment

Floor preservation and repair

Every barrier depends on the floor it is anchored to. Repeated impacts into rigid steel barriers can lead to:

Anchor elongation or pull-out
Spalling or cracking around baseplates
Cone failure, where anchors tear out a large section of concrete during impact
Costly re-drilling or patch repairs

Polymer systems exert significantly lower peak loads on the floor. Protecting the floor is also a requirement in recognised codes of practice for barrier testing. Anchors act as pivots rather than hard stops, helping to keep surrounding concrete intact.

Over five years, avoiding floor repairs alone can represent substantial savings. When indirect costs are included, such as closing aisles or stopping production during repairs, the total expense increases quickly.

Barrier maintenance and repair costs

In our own observation of polymer rack-end protection in a busy logistics facility, 20 sections were impacted 61 times over 127 days. While many impacts were minor, five were severe enough that a steel barrier would likely have required replacement. Extrapolated across a 100-metre installation, this equates to roughly 30 severe impacts per year, while the polymer barriers continued performing as intended.

Steel barriers are often damaged beyond use after a single moderate impact. Repairs are typically more complex and time-consuming, and disassembling deformed steel introduces safety risks during maintenance. In comparison, polymer barriers are designed to withstand repeated impacts over time and allow damaged components to be replaced quickly and safely.

Modular polymer systems allow for faster and safer component-level replacement. Steel barriers also require regular maintenance, including:

Torque checks every 6 to 12 month
Touch-up painting or recoating every 2 to 3 years

Vehicle damage

When a rigid steel barrier brings a three-tonne forklift to an abrupt stop, damage to forks, wheels, steering or hydraulics is common. Repairs are expensive and downtime further increases the impact on operation.

By absorbing energy, polymer barriers reduce rebound forces and help prevent secondary vehicle damage. Over time, reduced wear and fewer incidents lead to lower maintenance costs and fewer disruptions.

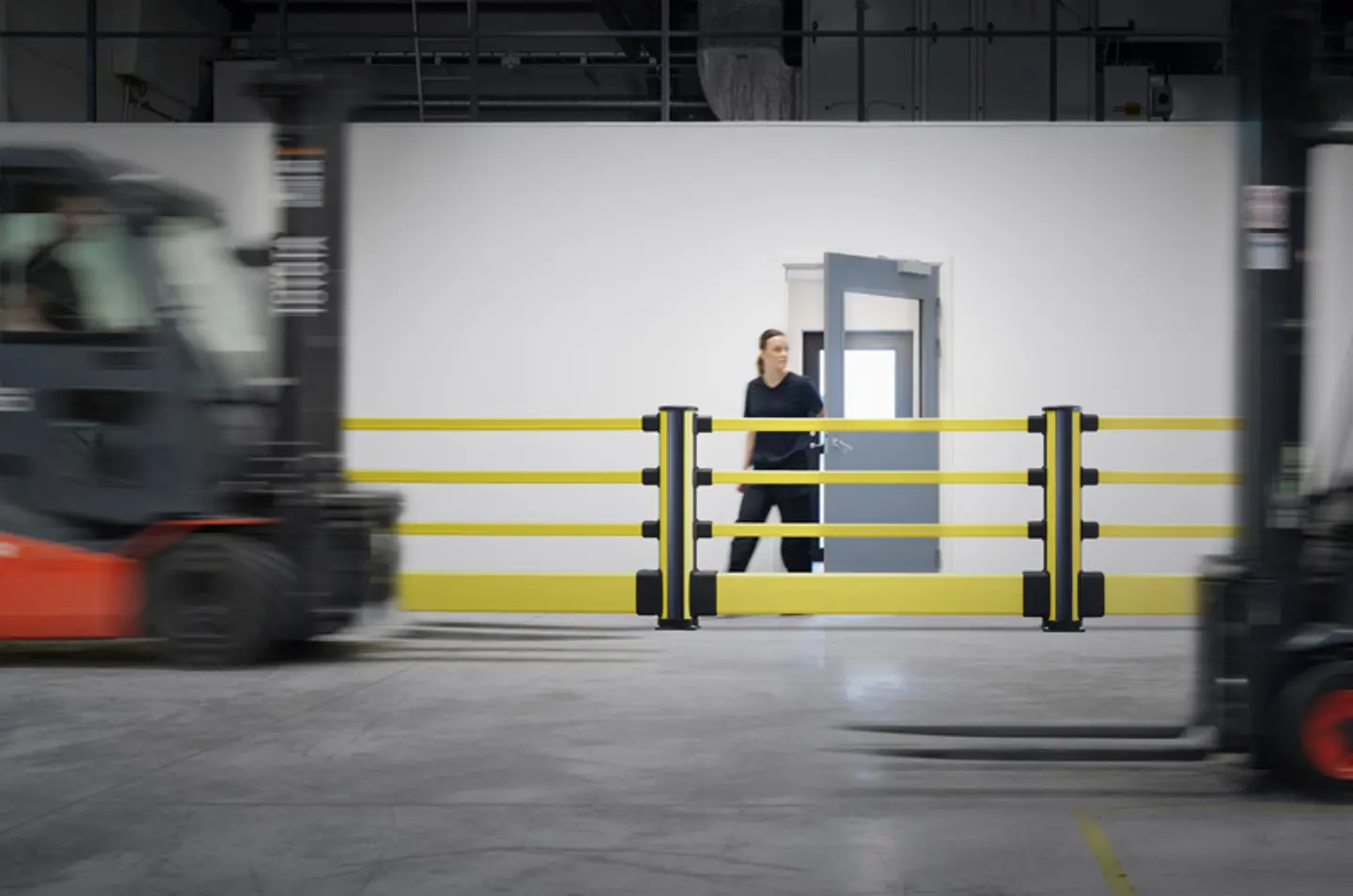

Pedestrian walkway protected by polymer safety barriers in an industrial facility

Operational downtime and disruption

Every hour an aisle is closed or a production line is stopped for barrier repair is time when operations slow or stop. The cost is rarely limited to the barrier itself.

Severe impacts to steel barriers often require isolation, inspection and concrete repair. Even short repair activities can render an area unusable, while concrete repairs often take days. These disruptions can quickly exceed the original purchase cost of the barrier system.

Polymer barriers flex and recover, often requiring only a visual inspection or minor component replacement. In many cases, the area can return to service within minutes.

Key conclusions from the comparison

The real decision isn’t about material. It is about how each system handles impact energy. Steel barriers transfer it into the floor and vehicle, while polymer barriers absorb and control it.

Rigid steel barriers have served industry for decades, but in high-traffic environments their hidden costs are substantial. Floor repairs, vehicle damage, repainting and downtime all accumulate, even before considering personal injuries.

Modern polymer barriers, repay that investment quickly, often within the first 18 to 24 months, and continue to deliver savings year after year.

Steel barriers define space.

Polymer barriers protect productivity.
