Panels

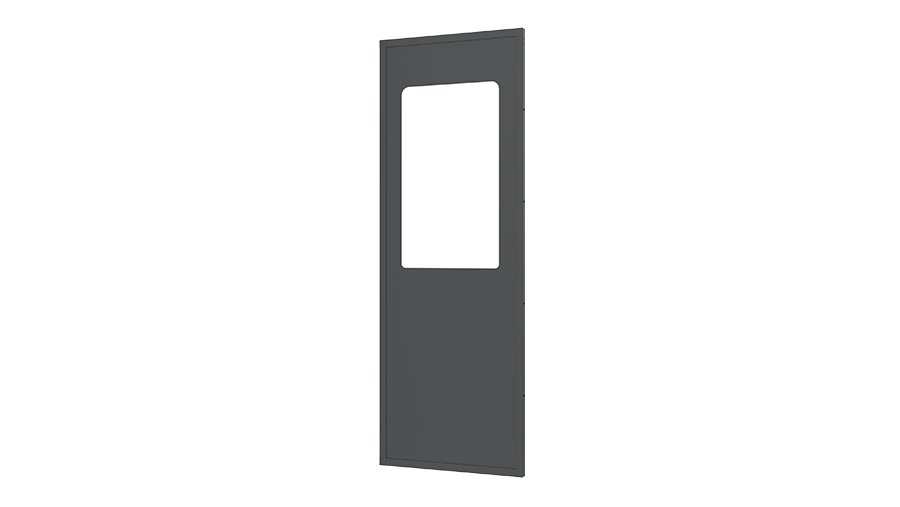

Sheet metal panel with window

3D

X-Guard sheet metal panels are also available with window. Some environments require more comprehensive protection, which our sheet metal covered walls can provide. When a process needs to be monitored then the windowed panel is the perfect solution. The window is available in clear or coloured p...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Number Description Width (mm) Height (mm) Color

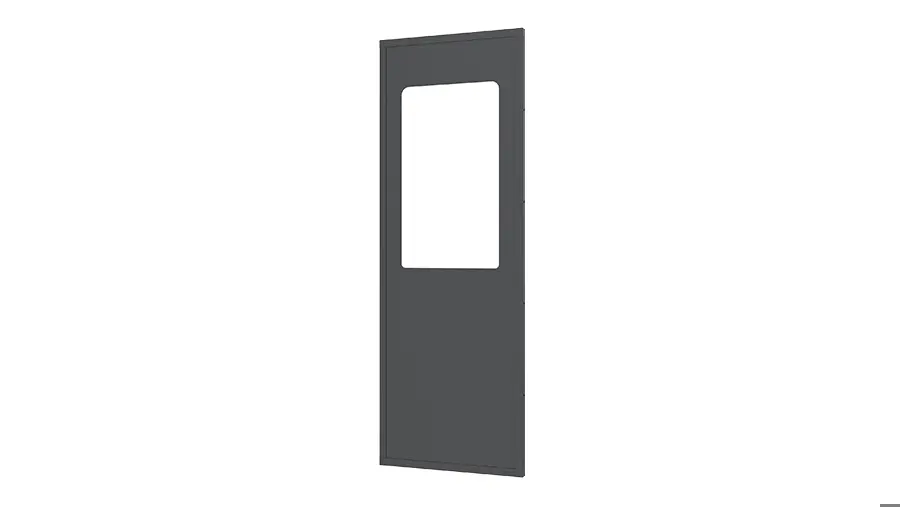

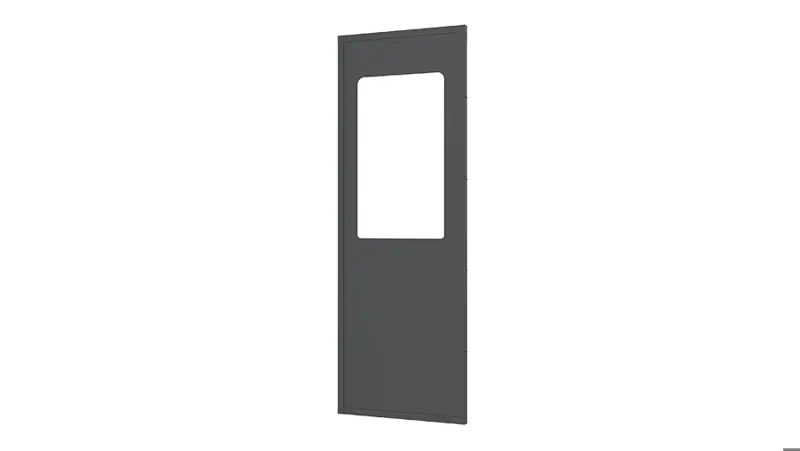

W340-220080 Transparent 800 2200 Graphite Black
1

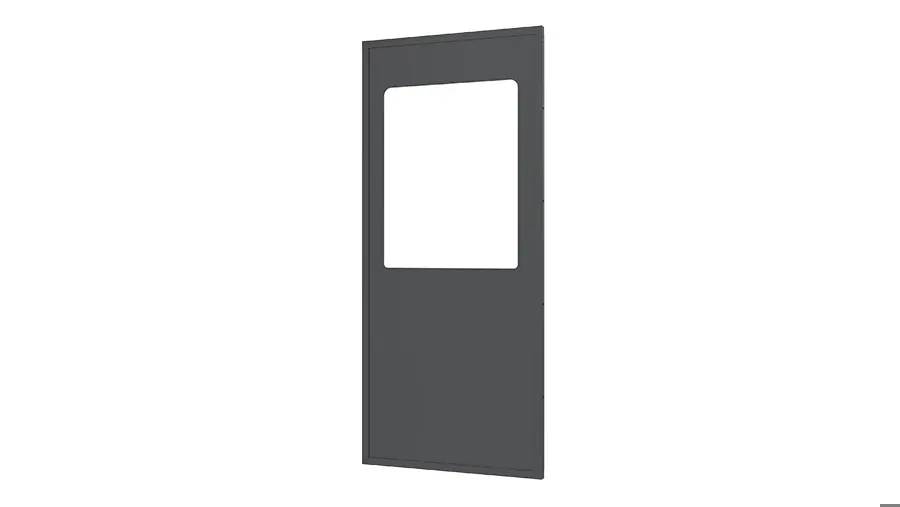

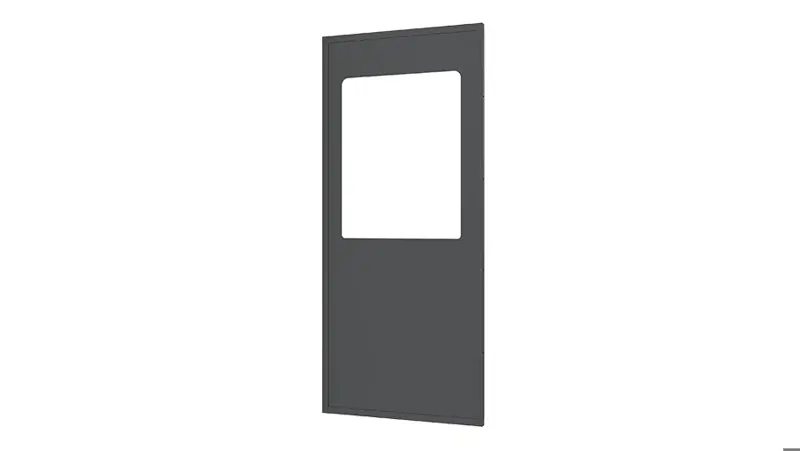

W340-220100 Transparent 1000 2200 Graphite Black
1

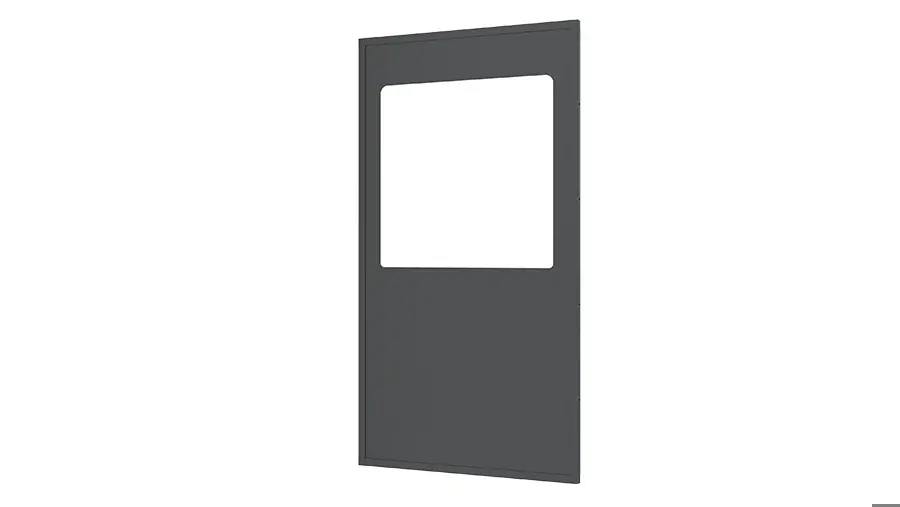

W340-220120 Transparent 1200 2200 Graphite Black
1

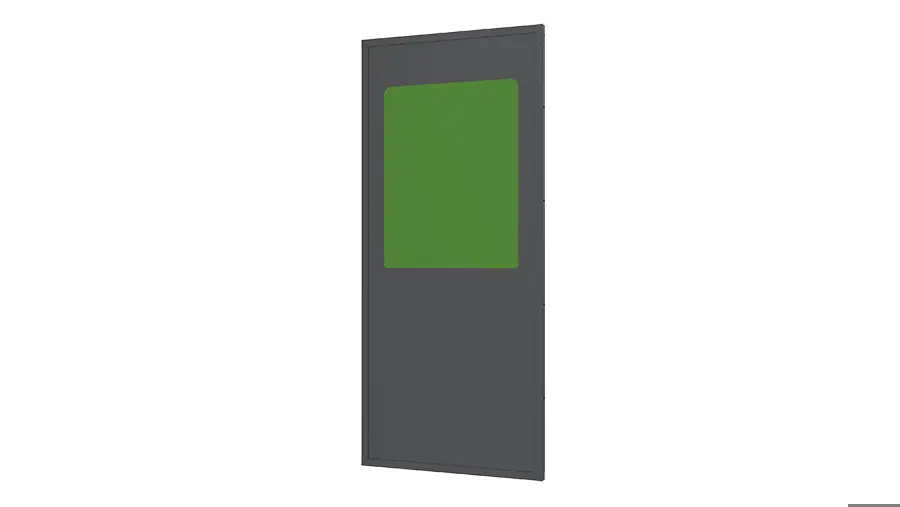

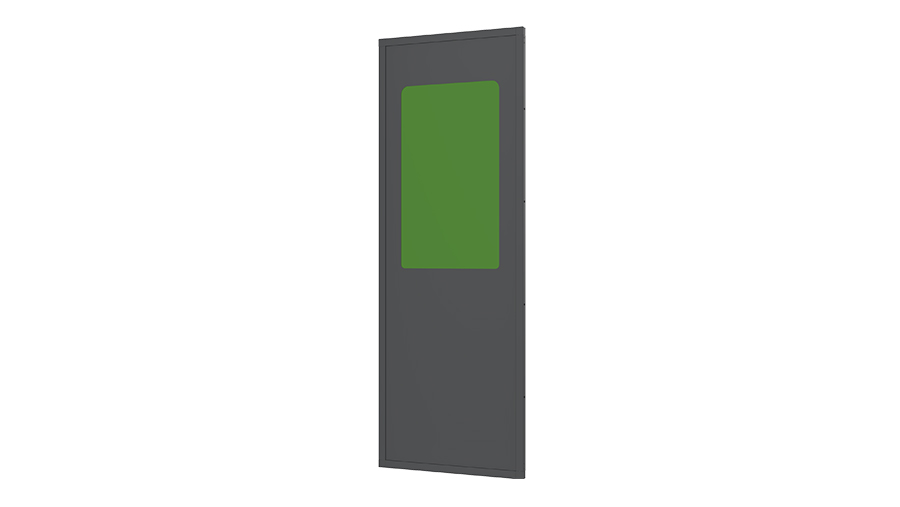

W347-220080 Welding Green 800 2200 Graphite Black
1

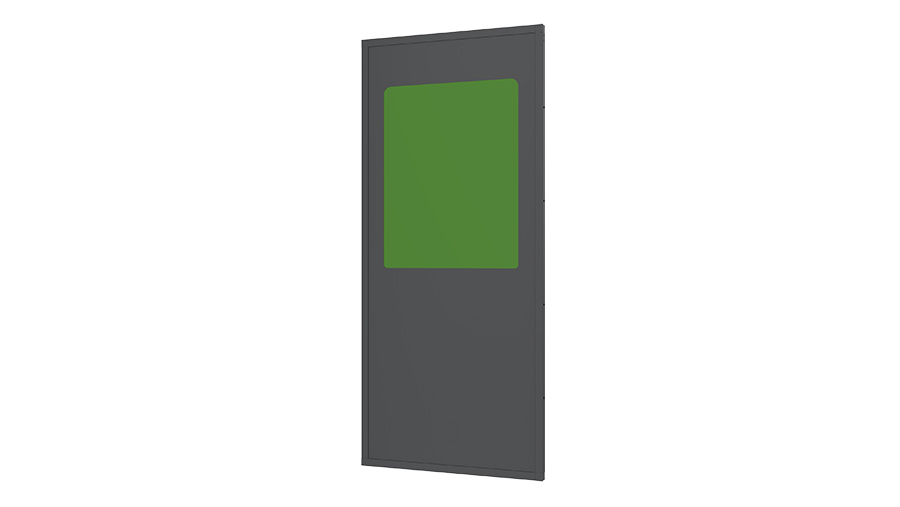

W347-220100 Welding Green 1000 2200 Graphite Black
1

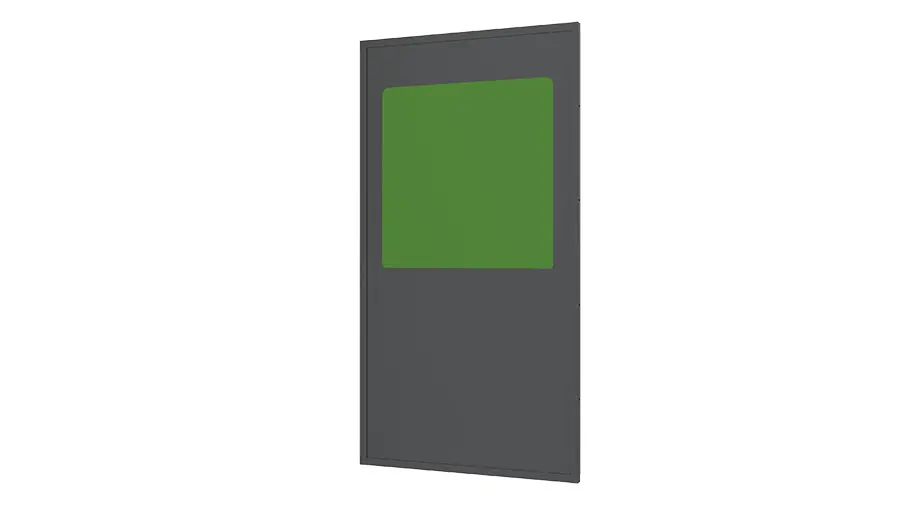

W347-220120 Welding Green 1200 2200 Graphite Black
1

Downloads

Sheet metal panel with window

Product information

X-Guard Classic

Assembly guide

X-Guard Premium

Assembly guide

D358-XXXXXX, D359-XXXXXX, G3059-X

Assembly guide

X-Guard Technical

Brochure

Product information

X-Guard sheet metal panels are also available with window. Some environments require more comprehensive protection, which our sheet metal covered walls can provide. When a process needs to be monitored then the windowed panel is the perfect solution. The window is available in clear or coloured plastic, the latter to guard against welding flashes. The coloured plastic meets safety standards EN ISO 25980:2014.





The sheet metal panel with window comes in two heights and widths. The sheet is 0,8 mm and has a 30x20 mm frame with factory-fixed brackets to facilitate assembly. The standard color of the panel is black (RAL 9011) but customised colours are available upon request.

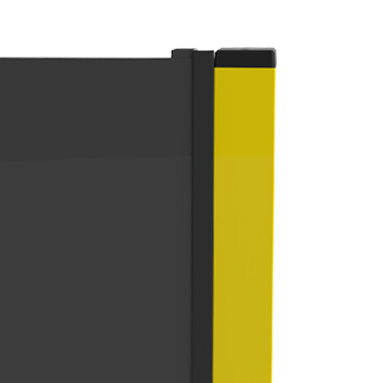

X-Guard sheet metal panels are easy to fit and you can use the same posts and door packages as for our other X-Guard products. To avoid gaps between the panel and post we recommend you to fit the Cover strip included with the sheet metal panel.

See the product in Axelent Xperience
Related articles
Axelent Is Your Complete Industrial Safety Supplier

13 June 2024 • About Axelent, World of Axelent, News, FAQ, Machine Safety, Fall protection, X-Guard, Impact protection, We are all about safety, Cable tray

Axelent Is Your Complete Industrial Safety Supplier
Discover our smart and easy click fitting system in our digital showroom Xperience

27 Feb 2024 • Machine guarding, X-Guard, Xperience, Click fitting

Discover our smart and easy click fitting system in our digital showroom Xperience

Related products

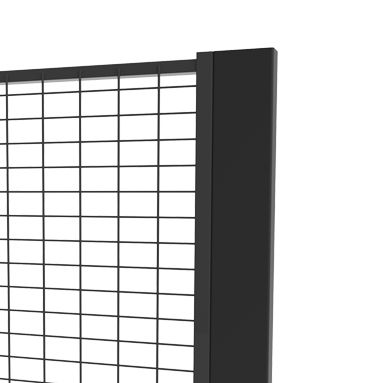

Cover strip
