Locks and switches

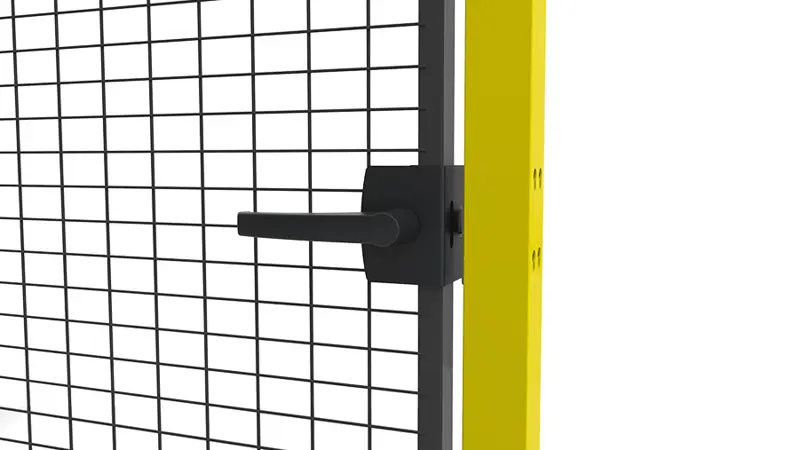

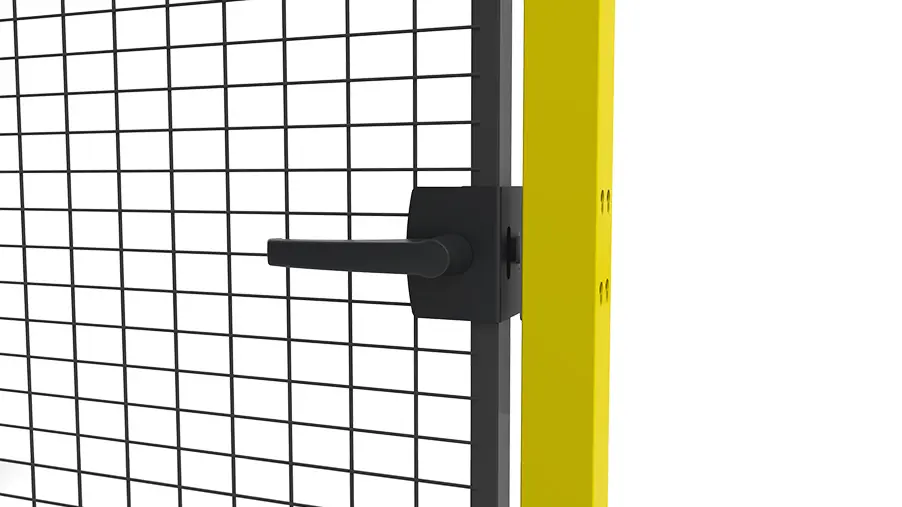

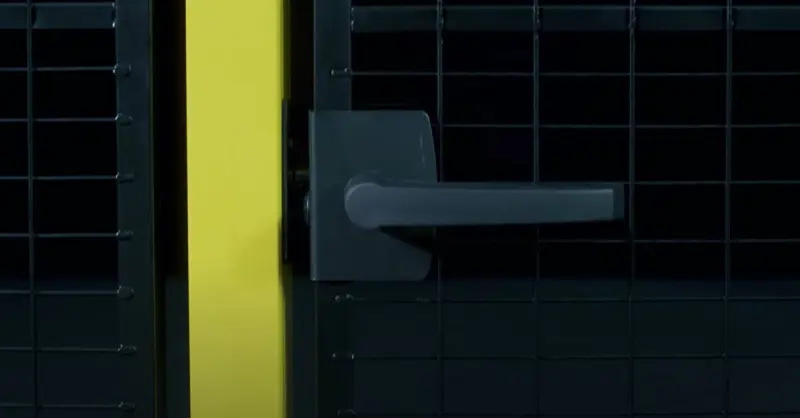

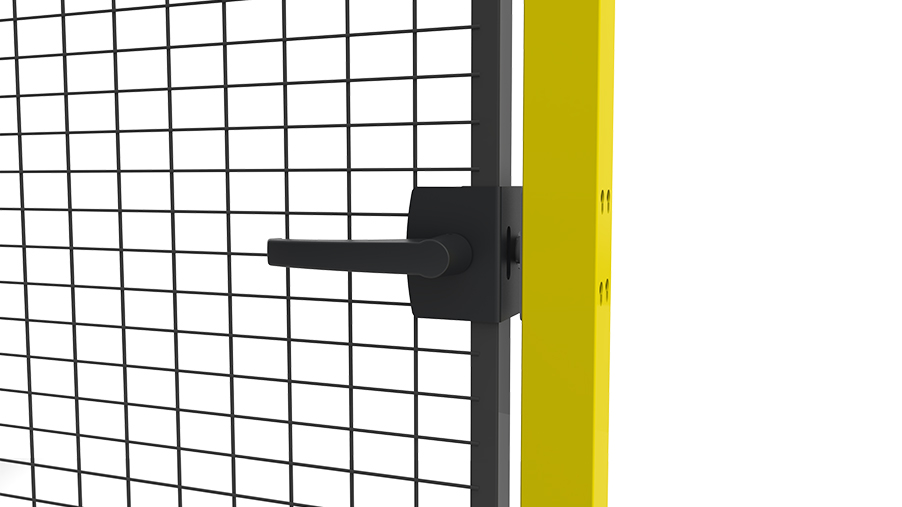

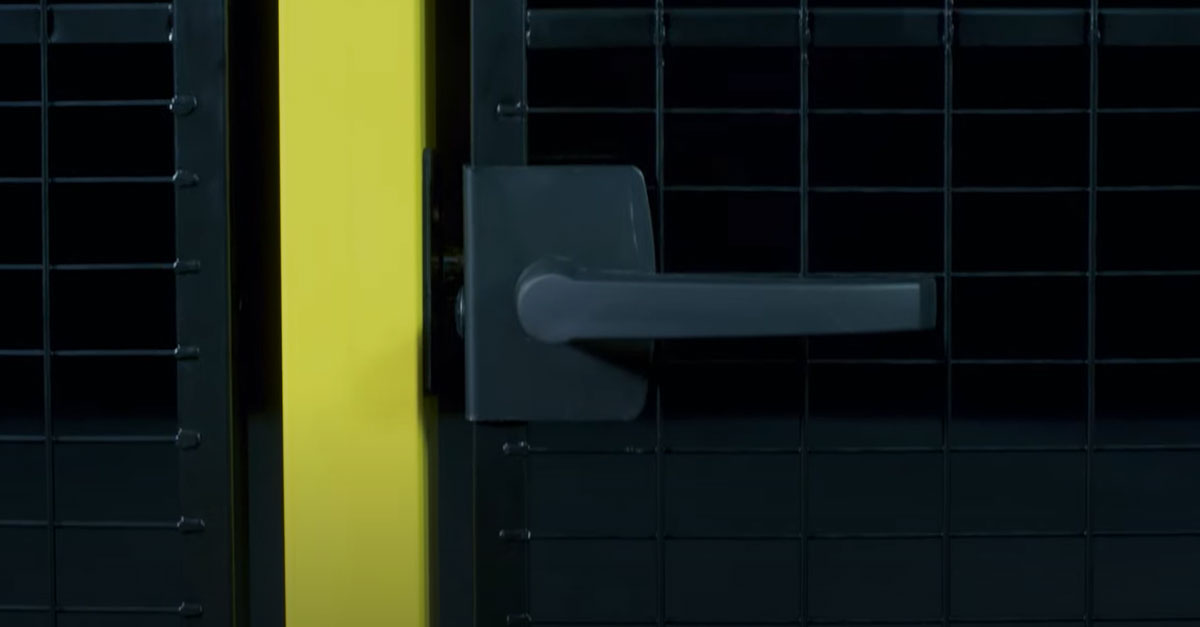

Snap lock

3D

Snap lock is widely used on machine guards in conjunction with switches. One press and the door closes and remains closed thanks to the lock’s snap function. The lock can also be supplemented with a magnet T01-08.

Get your quote now

Models

CAD Article Description Color
L10-05-0 Snap lock for hinge door, right/left
1
L20-05-0 Snap lock for sliding door, right/left
1
L22-05-0 Snap lock for sliding door with centre lock
1
G3059-1 Lock plate for Snap lock Graphite Black (RAL 9011)
1

Downloads

L10-05-0

Assembly instruction

L20-05-0

Assembly instruction

L22-05-0

Assembly instruction

X-Guard Locks

Product information

X-Guard Technical

Brochure
