Mesh panels

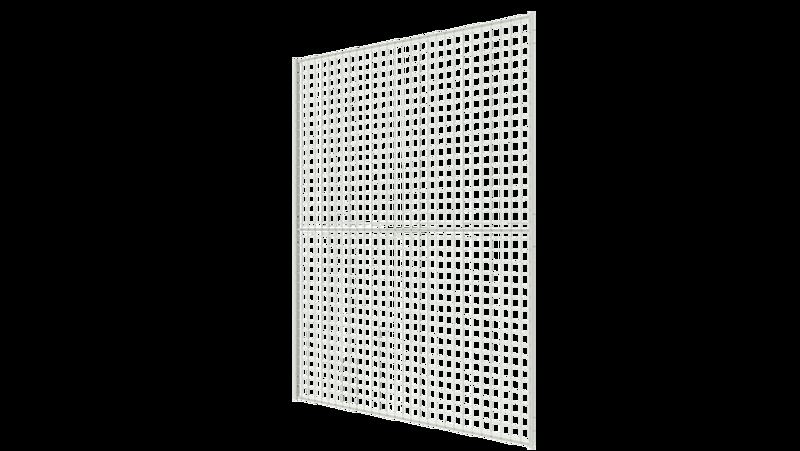

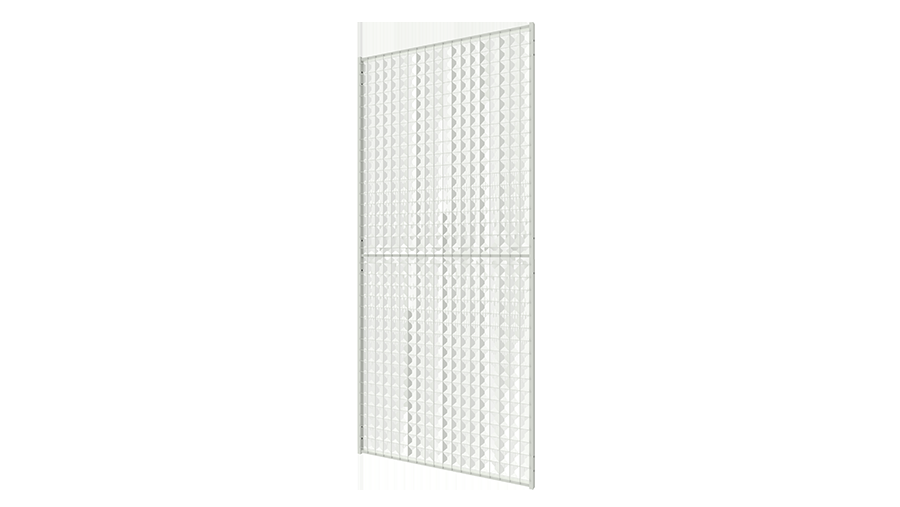

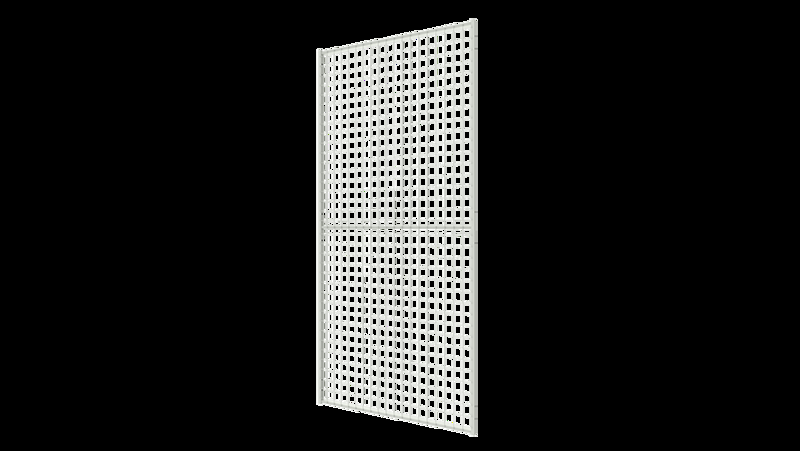

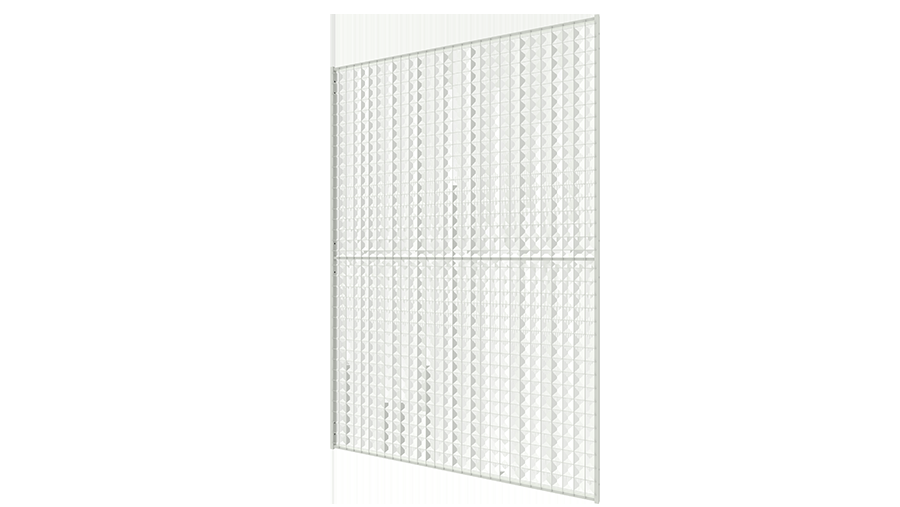

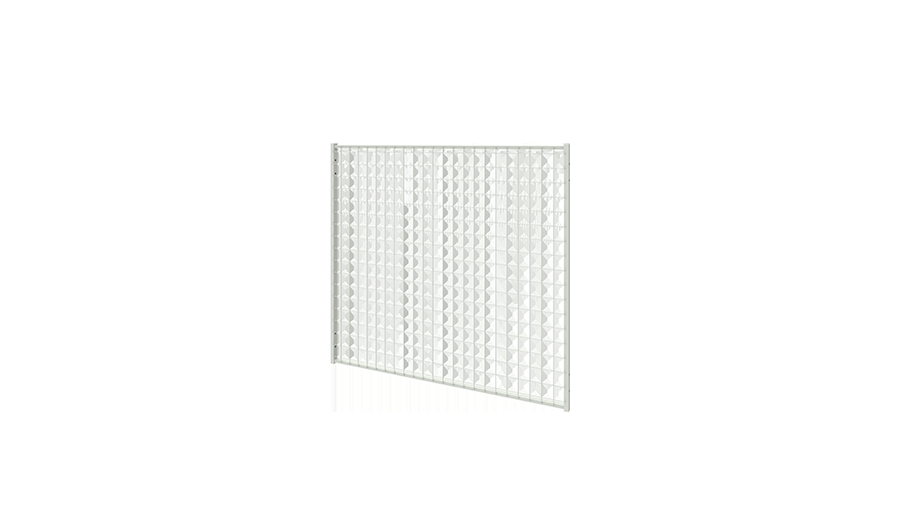

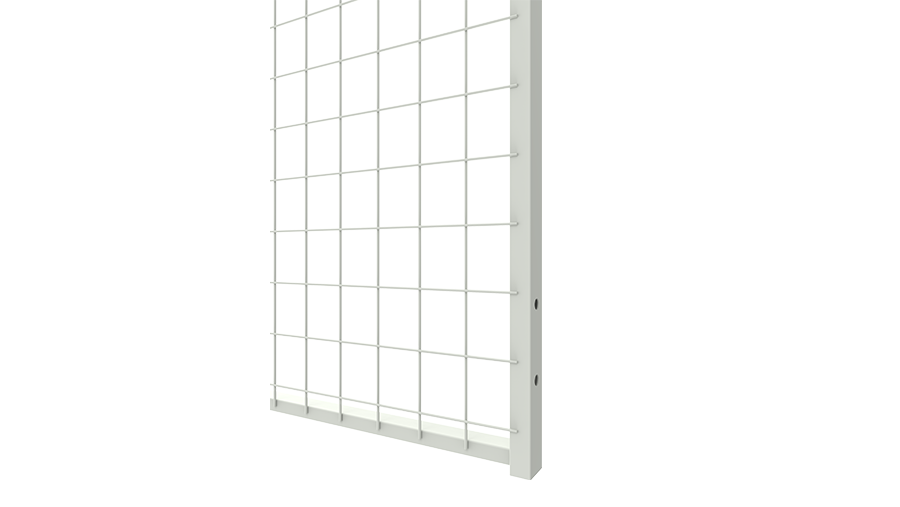

Mesh panels 60x50 mm

3D

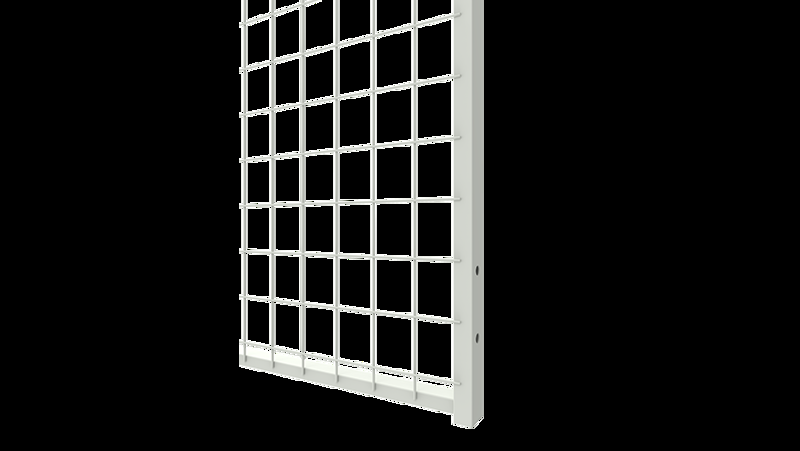

The mesh section is available in two widths, 1100 mm and 2200 mm and three heights.The standard section colour is RAL 9018 (light grey). We can however supply panels in the colours customers require. Get your quote now

Models

  • Width 1100 mm

    3 Articles
    CAD Article Height x Width (mm) Mesh Aperture

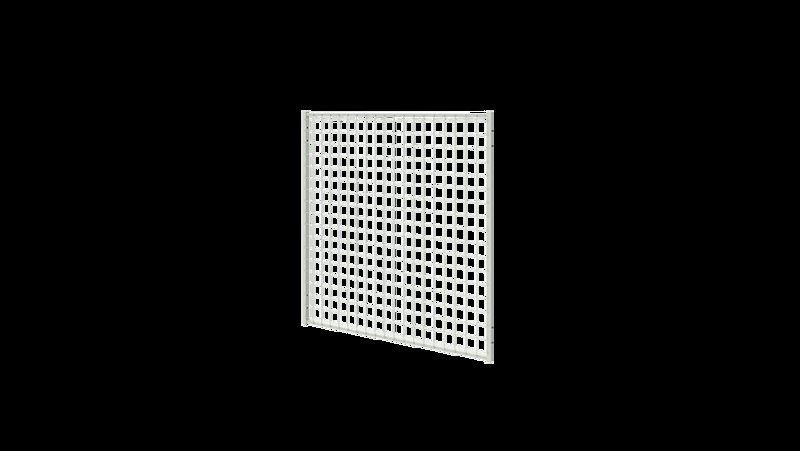

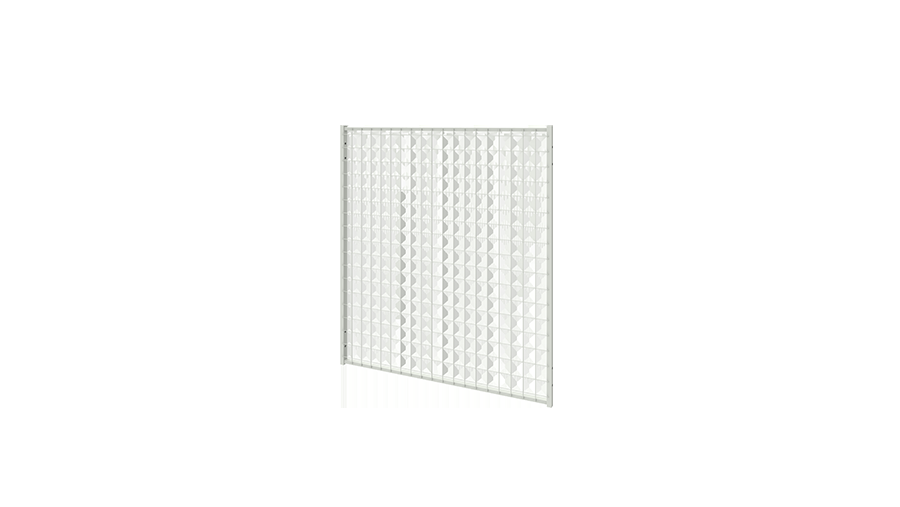

    413-100110 1000x1100 60x50
    1

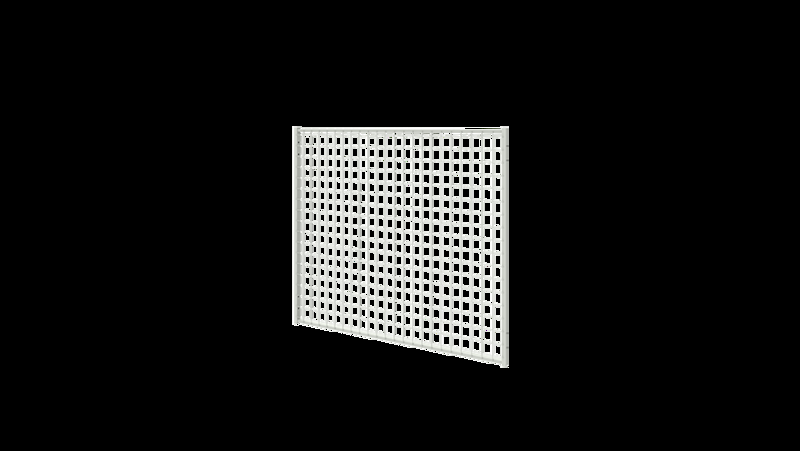

    413-120110 1200x1100 60x50
    2

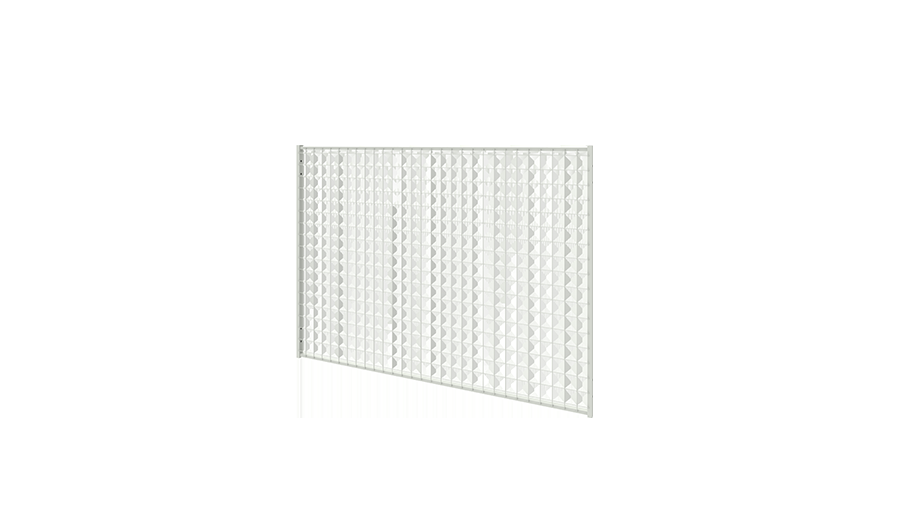

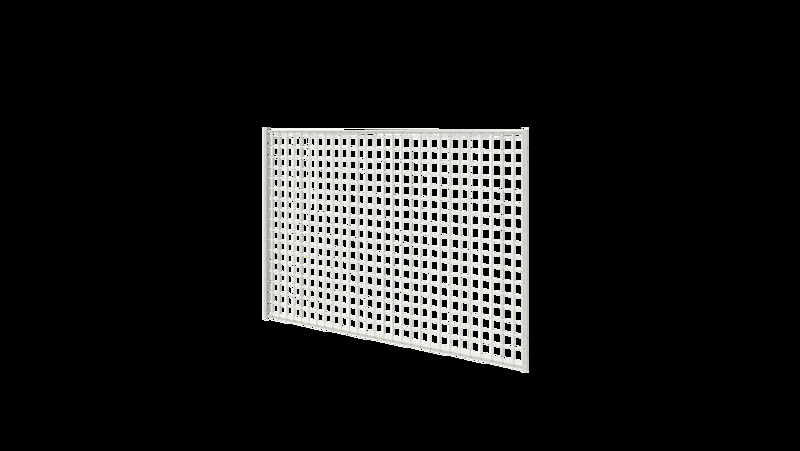

    413-150110 1500x1100 60x50
    1
  • Width 2200 mm

    3 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    413-100220 1000x2200 60x50
    1

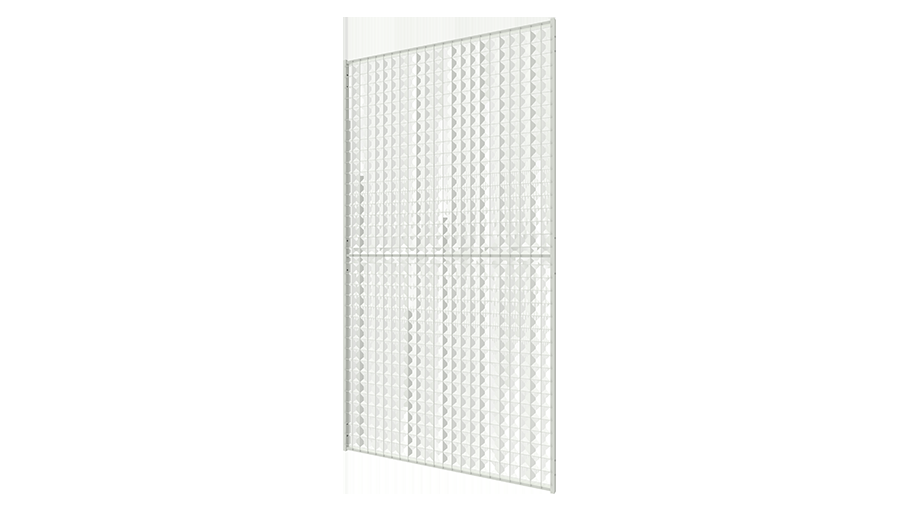

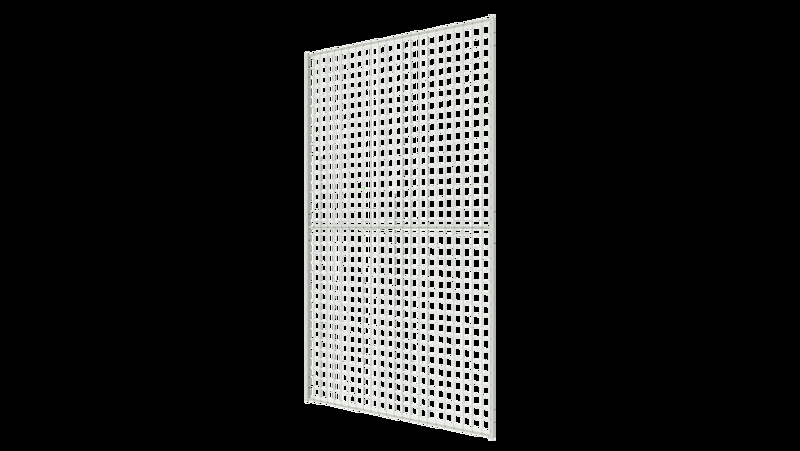

    413-120220 1200x2200 60x50
    1
    413-150220 1500x2200 60x50
    1

Downloads

SafeStore assembly guide

Assembly guide

Technical Specifications

The mesh section is available in two widths, 1100 mm and 2200 mm and three heights.
The standard section colour is RAL 9018 (light grey). We can however supply panels in the colours customers require.

Post extensions are available as an accessory. This makes it possible to mount the guard higher than the post itself.

Related products

Mesh panels 50x30
Bracket Sendzimir

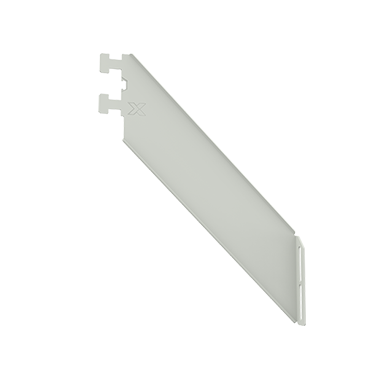

Bracket (RAL 9018)
