Accessories

X-Roll-Up

3D

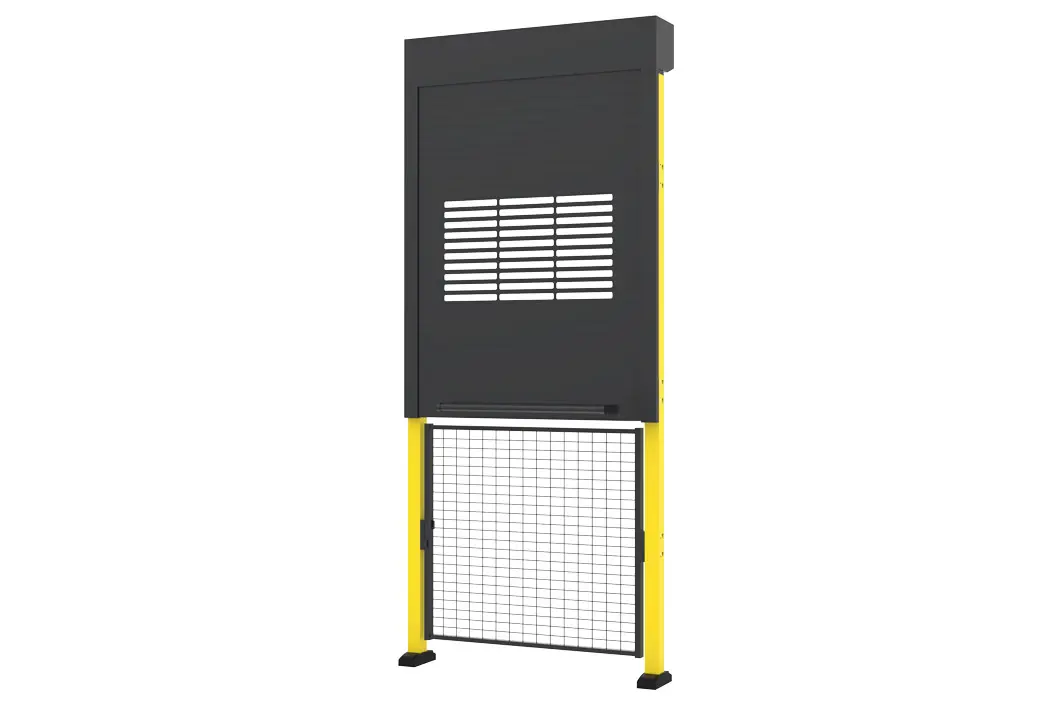

Axelent’s X-Roll-up is an excellent versatile alternative to doors where only a partial opening is required. For the implementation at manual workstations X-Roll-up is an ideal application for an effective and economical solution.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Number Description Width (mm)
S-0145-15 post H: 2000 mm / 930 mm / 830 mm 800
S-0145-16 post H: 2000 / 1130 / 1030 1000
S-0145-17 Post H: 2000 / 1330 / 1230 1200
S-0145-18 Post H: 2300 / 930 / 830 800
S-0145-19 Post H: 2300 / 1130 / 1030 1000
S-0145-20 Post H: 2300 / 1330 / 1230 1200

Downloads

X-Roll-Up

Product information

X-Guard X-Roll-up

Product information

X-Roll-Up

Assembly guide

X-Guard Technical

Brochure

Product information

Axelent’s X-Roll-up is an excellent versatile alternative to doors where only a partial opening is required. For the implementation at manual workstations X-Roll-up is an ideal application for an effective and economical solution.

The manual roller door consists of a modular system with integrated spring loaded shaft and is available as standard in three widths and two heights. X-Roll-up wraps the aluminium rolling door during opening onto a shaft in the box at the top.

X-Roll-up is offered like a kit (including mounting material). Posts and wall section needs to be ordered separately. Integration into the X-Guard system is easy.

Heights: 2000 mm (2185 mm incl. top box) and 2300 mm (2485 mm incl. top box). Available in RAL 9011 (other colours available upon request).

See the product in Axelent Xperience

Related products

Mesh panel
Posts
