Essential Pedestrian with Impact High

The X-Protect Essential Pedestrian with Impact High Barrier offers reinforced protection in busy traffic zones. Designed to handle low-level impacts, it separates pedestrians from vehicles while maintaining strong, flexible barrier performance.

Get your quote now

First name *

Last name *

Email *

Phone

State

Subject *

Message *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

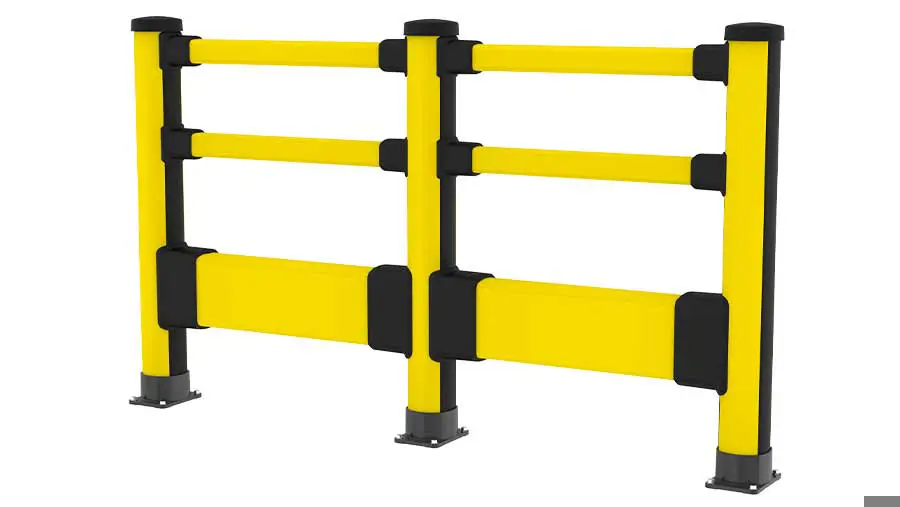

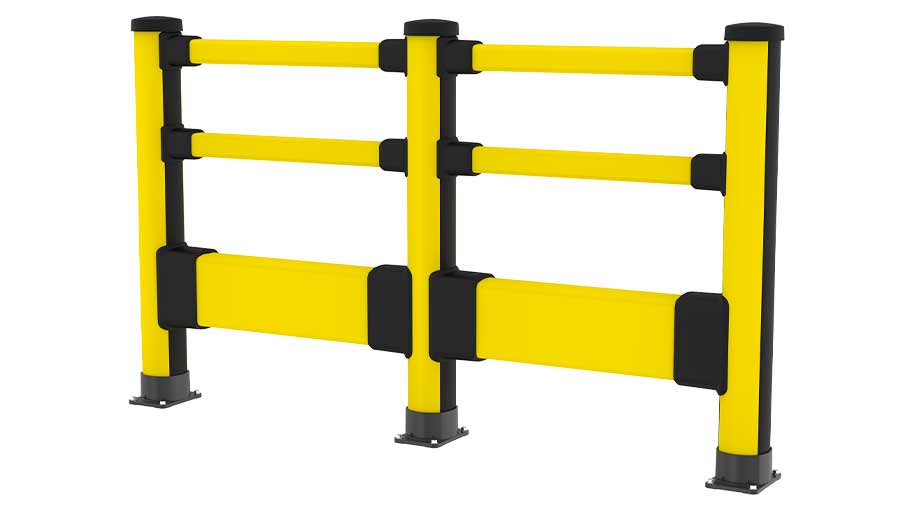

Black and yellow Essential Pedestrian with impact high configuration

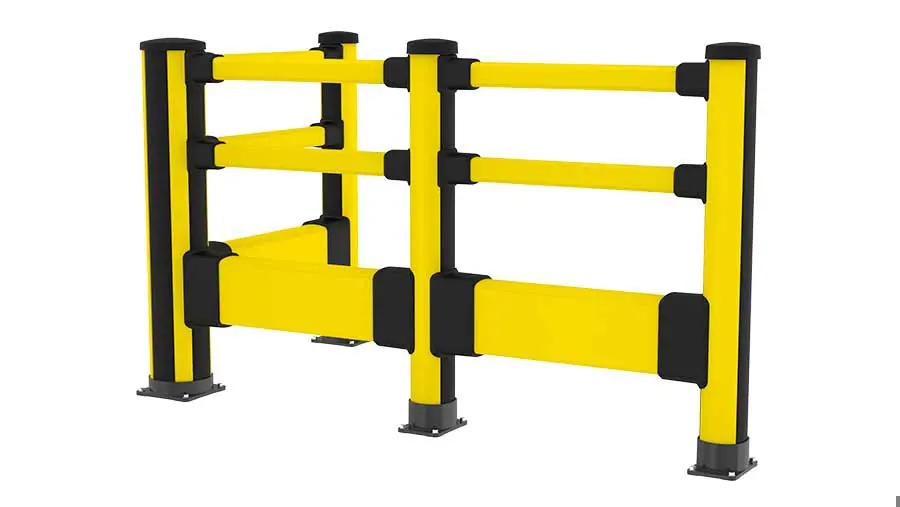

Black and yellow Essential Pedestrian with impact high corner configuration

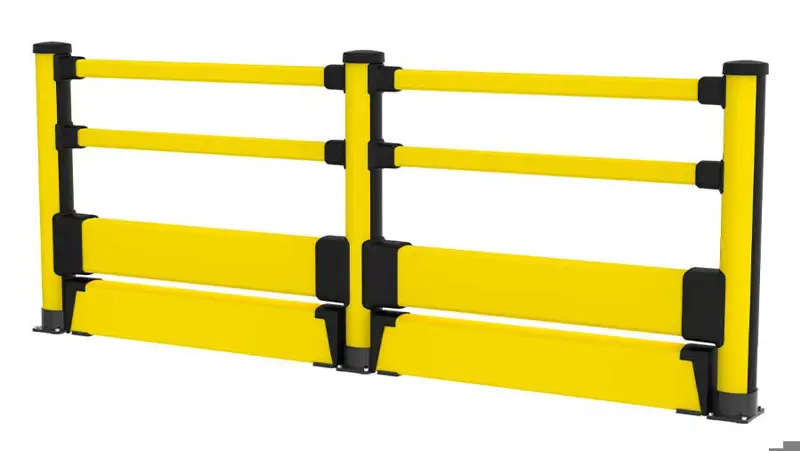

Black and yellow Essential Pedestrian with impact high configuration with Floor Barrier

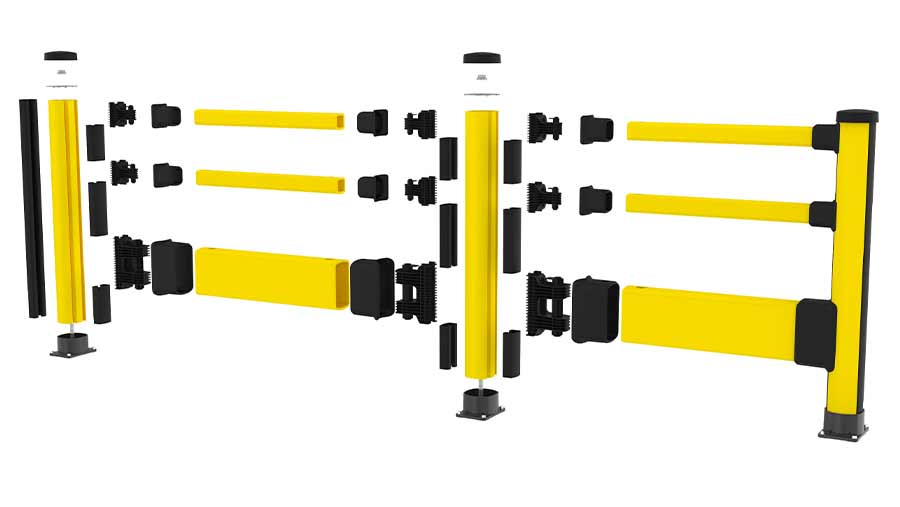

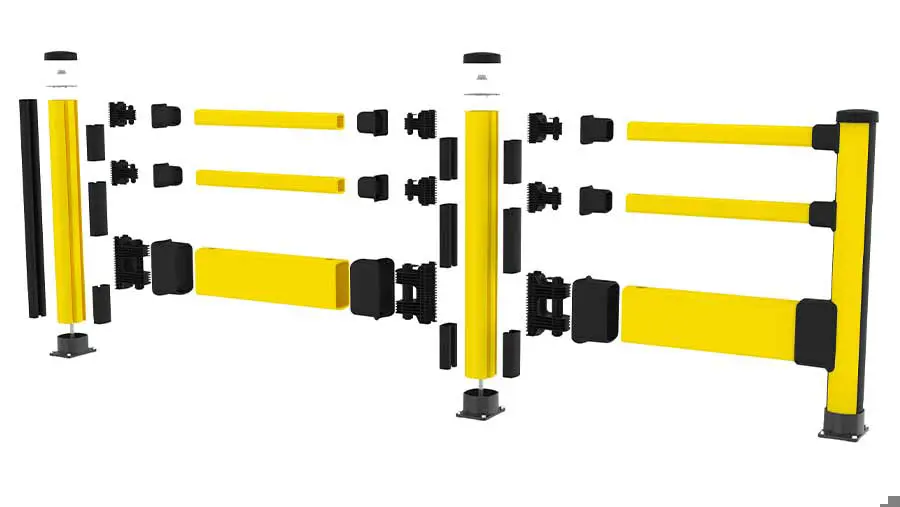

Black and yellow Essential Pedestrian with impact high configuration exploded

Select CAD Format

1/4

2/4

3/4

4/4

Models

Posts

3 Articles

Article Number	Description	Height (mm)	CC (mm)	Other
BEE0-117-I1P2-A1	End post	1170	2000	Compatible with the Floor Barrier	1
BEM0-117-I1P2-A1	Mid post	1170	2000	Compatible with the Floor Barrier	1
BCC0-116-I1P2-E2	Corner post	1160	2000		1

View more View less

Impact rails

7 Articles

Article Number	Description	Length (mm)	CC (mm)
RCI1-277-0300	Impact rail	2770	3000	1
RCI1-227-0250	Impact rail	2270	2500	1
RCI1-177-0200	Impact rail	1770	2000	1
RCI1-127-0150	Impact rail	1270	1500	1
RCI1-077-0100	Impact rail	770	1000	1
RCI1-047-0070	Impact rail	470	700	1
RCI1-027-0050	Impact rail	270	500	1

View more View less

Hand rails

5 Articles

Article Number	Description	Length (mm)	CC (mm)
RCP1-177-0200	Hand rail	1770	2000	1
RCP1-127-0150	Hand rail	1270	1500
RCP1-077-0100	Hand rail	770	1000	1
RCP1-047-0070	Hand rail	470	700	1
RCP1-027-0050	Hand rail	270	500	1

View more View less

Downloads

Essential Pedestrian with Impact High

Product information

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

The Essential Pedestrian with Impact High Barrier provides reinforced safety for walkways exposed to medium-duty vehicles and frequent ground-level impacts. Designed for combined strength and flexibility, it separates pedestrians from vehicles while absorbing impact energy at the base to minimise damage and maintain barrier integrity.

For areas with intensive material handling, the Floor Barrier adds an extra layer of protection. Positioned at ground level, it ensures a clear division between pedestrian and vehicle routes, preventing contact with vehicle forks, low pallets or stray objects. Acting as a robust foundation, it complements the higher structure by distributing impact forces efficiently and maintaining safe, predictable traffic patterns throughout the facility.

Installation is fast and straightforward, with minimal fixings and a design that protects the floor surface during both setup and maintenance.

Key feature

Fast to install
Kind to the floor
Easy to repair

Impact test results
Area of impact	Load	Equivalent to		90° Defelction	Force to fixings
Centre of barrier C - C as below
2000mm	3100 J	2500kg 5.7 km/h	1500kg 7.3 km/h	295mm	5.7kN
Posts
End post	1500 J	2500kg 3.9 km/h	1500kg 5 km/h	500mm	3.2kN
Mid post	1500 J	2500kg 3.9 km/h	1500kg 5 km/h	450mm	3.3kN

View more View less
