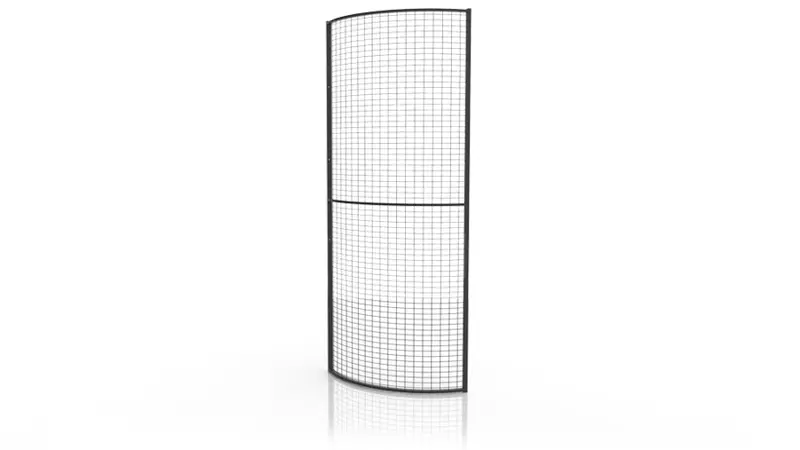

X-Guard Contour is a unique machine guard with rounded corners. It is the perfect solution where space is limited and has a modern appearance and design. The rounded panels are part of our X-Guard range and can be combined with other X-Guard components.
Panels are available in three heights 1300, 1900 and 2200 mm and two angles, 45° (available via special order) and 90°. The standard panel colour is RAL 9011. We can however supply panels in the colours customers require.
| Product facts | ||
|---|---|---|
| Safety distance | 200 mm | |
| Uprights | 30x20 mm | |
| Horizontals | 25x15 mm | |
| Posts | 50x50, 70x70 mm | |
| Vertical wires | Ø 3 mm | |
| Horizontal wires | Ø 2,5 mm | |
| Mesh aperture | 50x30 mm | |
| Finish | Phosphatising/Epoxy paint | |
| Colour mesh panel | Black RAL 9011 | |
| Colour post 50x50 mm | Yellow RAL 1018, black RAL 9011, | |
| blue RAL 5005, red RAL 3020 | ||
| Colour post 70x70 mm | Yellow RAL 1018, red RAL 3020 | |
| (Other colours can be quoted) | ||
| Product facts | ||
|---|---|---|
| Art. nr | Height (mm) x Width (degrees) | Other |
| W32R45-130 | 1300x45 | (Available via special order) |
| W32R90-130 | 1300x90 | |
| Product facts | ||
|---|---|---|
| Art. nr | Height (mm) x Width (degrees) | Other |
| W32R45-190 | 1900x45 | (Available via special order) |
| W32R90-190 | 1900x90 | |
| Product facts | ||
|---|---|---|
| Art. nr | Height (mm) x Width (degrees) | Other |
| W32R45-220 | 2200x45 | (Available via special order) |
| W32R90-220 | 2200x90 | |
